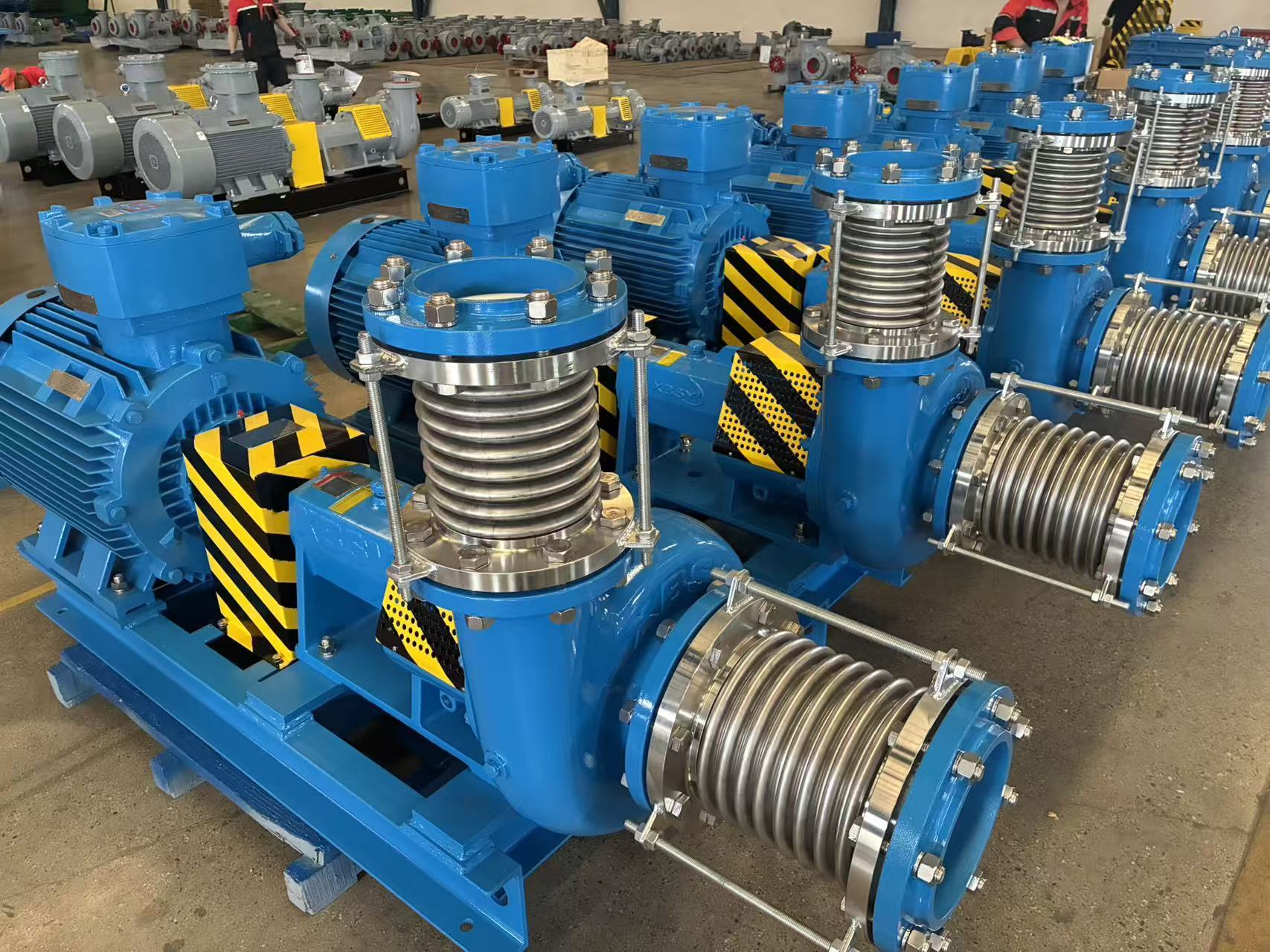

XBSY Sand Pump & Centrifugal Mud Pump for Oilfield Drilling Fluid Solids Control
The XBSY Sand Pump is a robust centrifugal mud pump developed for oilfield drilling fluid transfer and solids control operations. It provides a consistent and reliable flow of drilling mud to equipment such as desanders, desilters, mud cleaners, and mud mixing systems, supporting efficient circulation throughout the solids control process.
Designed to handle abrasive drilling fluids containing sand and suspended solids, the pump is equipped with a durable mechanical seal system featuring tungsten carbide sealing faces and carbon fiber auxiliary sealing components. This wear-resistant configuration helps improve sealing reliability, reduce the risk of leakage, and extend service life during continuous drilling operations.
The pump's hydraulic system is engineered for efficient fluid transfer. The impeller and volute casing are optimized using CFD analysis to reduce hydraulic losses and improve overall pumping performance. Wear-resistant high-chromium cast iron components provide enhanced protection against erosion from sand and solid particles, helping reduce component wear and maintenance frequency.
The compact pump design supports both direct-drive and belt-drive configurations, allowing flexible integration into different oilfield solids control systems. Its practical structure makes installation, operation, inspection, and maintenance convenient.
The XBSY Sand Pump is suitable for a wide range of oil and gas drilling applications, including desander and desilter feeding, drilling mud circulation, mud mixing, and other drilling fluid transfer processes. With reliable hydraulic performance and strong abrasion resistance, it is designed for demanding field conditions.
Features
Patented Seal Technology - Service life is 6 times longer than an ordinary mechanical seal. (Patent No. ZL200720079857.2)
gh Efficiency - The impeller and pump shell port are designed with optimal streamlining.
Long Service Life - The overflow parts are made of ghly wear-resistant cast iron.
Non-clogging - The impeller is designed with a wide flow path.
Patented Appearance - Compact and reasonable structure (Patent No. ZL200730094452.1).
| Model |
Flow (m³/h) |
Head (m) |
Rotational Speed(rpm) |
Efficiency (%) |
Power (kW) |
Weight (kg) |
L*W*H (mm) |
| / |
/ |
/ |
50Hz |
60Hz |
/ |
Shaft Power |
Motor Power |
/ |
/ |
| SB6 × 8J-12½ |
200 |
36 |
1480 |
1780 |
66 |
29.7 |
55 |
1000 |
1996×698×972 |
